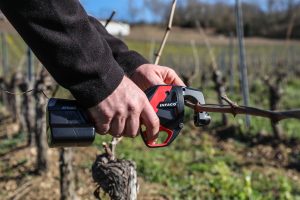

INFACO's professional electric tying tool, the AT1000, is reliable and fast, making tying tasks effortless.
Versatile, it accommodates various types of ties in viticulture: single or double Guyot, arcure, chablis, and trellising, among others.
The tool's performance is in line with the brand's renowned pruners. Its unique grip is identical to that of the F3020. It's now a true duo, from pruning to tying, that supports vine growers and orchard keepers in maintaining their farms.
The AT1000 is 100% automatic. With formidable efficiency, its ease of setup and operation are among its many advantages.
All device specifications are provided for reference only, are not contractual, and are subject to change.
The wire advancement technology of the machine allows for the use of a static spool, with simple unwinding from the inside. The work is comfortable throughout the day, without any jerking due to wire unreeling.
The setting of twists is possible and directly accessible on the machine's display screen. The 'settings' button allows you to achieve the desired level on a scale from 1 to 4, equivalent to knots between 2 twists. The knot's strength depends on the number of twists and adapts to the tying environment : weather conditions, wood types, and pruning techniques.
Three simple steps are all it takes to set up the electric tying tool :
It's primed and ready for use !

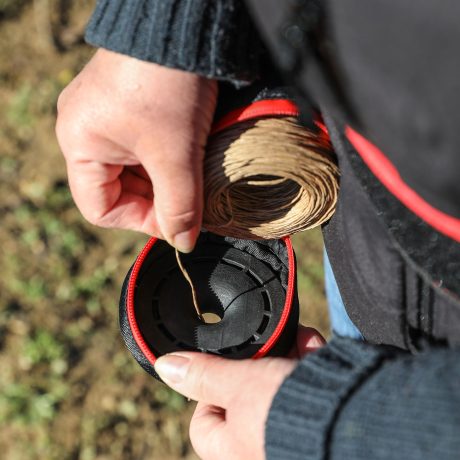

An INFACO spool has a capacity of at least 3000 ties, thanks to its 400 meters of wire. Yet, it's compact! It fits into the dispenser, attached to the belt. The pouch, also on the belt, allows you to carry a second spool with you.
In total, that's 800 meters of wire at the professional's fingertips, equivalent to at least 6000 ties made.
The spool, placed in its dispenser and attached to the carrying belt, holds the equivalent of at least 3000 ties. An additional spot has been designed in a pouch, also on the belt, to always have a second spool on hand. Just a few tens of seconds are enough to position a new spool in the dispenser and prime the machine.
All device specifications are provided for reference only, are not contractual, and are subject to change.
The tying tool's battery (10.8 V) promises approximately 8000 ties on a single charge. It attaches and detaches easily, with a full charging time of only 3 hours. 1 hour is sufficient to reach half the charge.
An optional second battery can be placed in the carrying belt and easily replaced during intensive tying sessions.
All device specifications are provided for reference only, are not contractual, and are subject to change.
Trois étapes simples suffisent à mettre en service l'attacheuse électrique :
1- Placer la bobine dans le dévidoir
2- Envoyer le fil dans la machine
3- Appuyer sur la gâchette
Elle est amorcée et déjà prête à être utilisée !
La technologie d'avancement du fil de la machine permet le recours à une bobine statique, avec dévidage simple par l'intérieur. Le travail est confortable tout au long de la journée, sans aucun à-coup dû au déroulement du fil.
Le paramétrage des vrilles est possible et directement accessible sur l'écran d'affichage de la machine. Le bouton "paramètres" permet d'atteindre le niveau souhaité sur une échelle de 1 à 4 équivalente à des nœuds entre 2 et vrilles. La tenue du nœud va dépendre du nombre de vrilles et s'adapte à l'environnement de l'attache : conditions climatiques, typologies du bois et techniques de taille.
La bobine, placée dans son dévidoir et accrochée à la ceinture de portage, représente l'équivalent d'au moins 3000 liens. Un emplacement a été pensé dans une sacoche, à la ceinture également, pour toujours avoir une seconde bobine sur soi. Quelques dizaines de secondes suffisent à positionner une bobine neuve dans le dévidoir et réamorcer la machine.
Une bobine INFACO a une capacité d'au moins 3000 liens, grâce à ses 400 mètres de fil. Pourtant son encombrement est mini ! Elle se place dans le dévidoir, sur la ceinture de portage. La sacoche, sur la ceinture également, permet d'emporter une seconde bobine avec soi.
Au total, ce sont donc 800 mètres de fil à portée de main du professionnel soit au moins 6000 liens noués.
La batterie de l'attacheuse (10.8 v) promet une autonomie d'environ 8000 attaches. Elle se clipse et se déclipse facilement et son temps de charge complet est de seulement 3h. 1h suffit à atteindre la moitié de la charge.
Une seconde batterie, en option, pourra être placée dans la ceinture de portage et remplacée facilement lors des sessions d'attachage intenses.
In the machine, the wire is automatically fed by the machine using an innovative system of synchronized rollers: it's called Dual Motion. It doesn't require any manual guidance for unwinding the spool. This unique principle minimizes unexpected jams.
In detail, a movable clamp grabs the wire and pulls it towards the nozzle. A spinner twists it and activates an internal knife that cuts the wire and releases the tie. The nozzle always remains static.
The machine consists of a single block, and the upper cover opens with a simple finger press. From here, direct access to the wire is available, and no detached parts can fall.
In the event of an unexpected jam, the internal mechanism allows for easy clearing of the roller to get the tying tool back in operation.
Le fil utilisé dans l'attacheuse électrique professionnelle d'INFACO est en acier et entouré d'un papier entièrement renouvelable : il est guipé. Respectueux de la nature, le papier protège la branche attachée en évitant le cisaillement du bois.
Une gamme de bobines, vendues par carton de 20 auprès d'un distributeur agréé, existe en 4 dimensions :
Chacune est adaptée à un type d'attache ou un climat particulier et sa tenue varie entre 8 et 12 mois. Pour tout conseil relatif aux dimensions de fil, demandez conseil à votre distributeur habituel.
Tous les collaborateurs INFACO ont la volonté de garantir un excellent niveau de service après-vente pour les utilisateurs. Une équipe de techniciens spécialisés s'occupe toute l'année des machines retournées en usine.
Sous réserve de révision, la garantie peut être prolongée jusqu'à trois saisons (valable pour les sécateurs et attacheuses).
