Pruner equipped with DSES Contactless in vineyard with carrying mitt - INFACO

Safety is essential to INFACO, which has been a pioneer in this field since the 1990s. Substantial R&D resources have been deployed, enabling us to offer a model with three different safety systems.

Technical information Safety level Dry wood cuts Damp wood cuts Cuts near the ground and/or on sap-filled woo Triggering by contact with trellis wires Wireless system Wearing of an INFACO conductor glove Wearing a transmitter on the opposite hand Contactless system
Hard wired DSES
No
No
Mandatory with the connection cable
No
No
Wireless DSES
The safety system can be triggered 5 to 10 times per day
Probable triggering of the safety system
Yes
Yes
Optional but recommended
No
No
Contactless
No
Yes
No
Yes
Yes

DSES Wireless

as standard

All INFACO F3020 pruning shears feature DSES Wireless (Wireless Supplementary Electronic Safety System) as standard. This device consists of a conductive trigger that provides the link between the user's body and the pruner's electronics. As soon as the tool's cutting head comes into contact with the opposite hand (bare or gloved), the blade reopens instantly: an accident can thus be avoided!

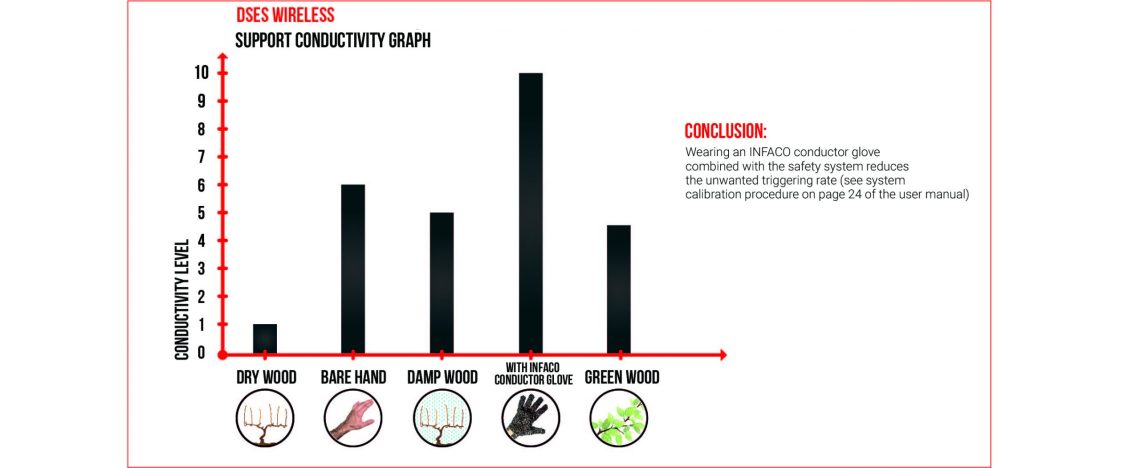

This DSES works on direct skin contact. However, as each person has his or her own level of conductivity, INFACO recommends wearing conductive gloves to guarantee a high level. They increase the signal, offer better protection and reduce accidental triggering on damp wood and/or wood too close to the ground.

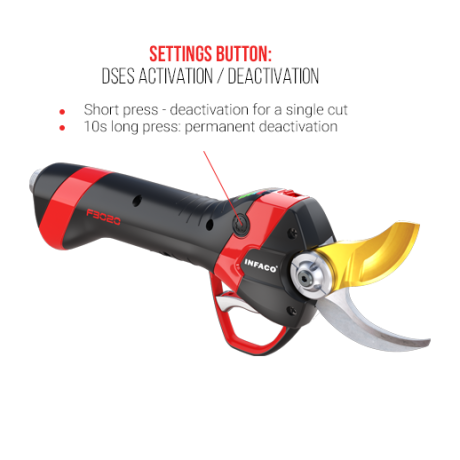

To activate and deactivate the system, simply press the “Settings” button:

  • Short press for deactivation on a single cut;
  • Long press for 10 seconds for permanent deactivation.

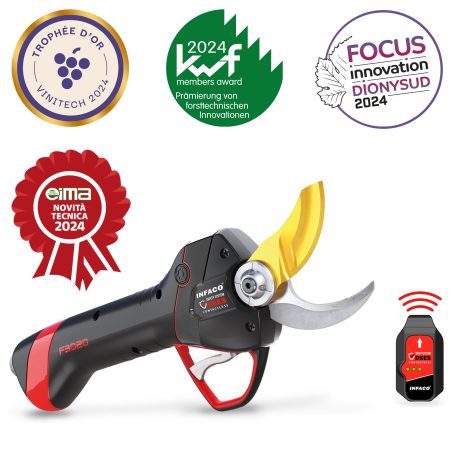

visuel médailles système DSES Contactless

Contactless DSES system

optional

The wireless safety device operates, in anticipation of danger, with a receiver in the pruning shear and a glove in which a transmitter is slipped. A safety bubble forms around the pruning shear's cutting head: when the opposite hand approaches too dangerously, the blade opens instantly. A real invisible protection, this contactless system promises to re-educate the pruning gesture in complete safety.

The option features three safety zones that can be set directly from the pruning shears or the INFACO mobile app (to be combined with an optional connected box) according to the size of the pruner's hand. The oval-shaped protection zone has been designed to follow the curves of the hand and preserve working habits.

This optional system fits all F3020 pruning shears marketed since April 2022.

2024 - Gold medal at the Vinitech innovation awards (Bordeaux - France)
2024 - Technical innovation award at EIMA (Italy)
2024 - Innovation award at the Kuratorium für Waldarbeit und Forsttechnik e.V (Germany)
2024 - Innovation Focus at Dionysud (France)
2024 - Silver medal at Sival (France)
2025 - Gold medal at the I-NOVO Awards (Agriexpo)

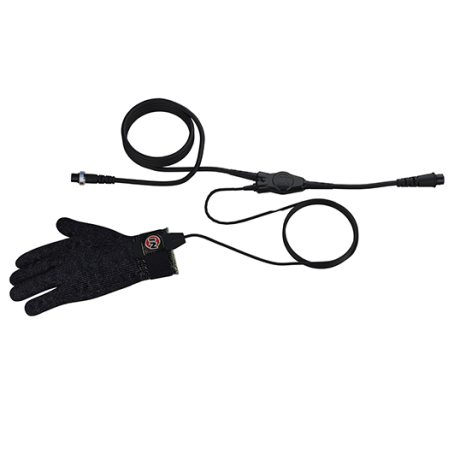

Gant DSES filaire INFACO

wired security

option

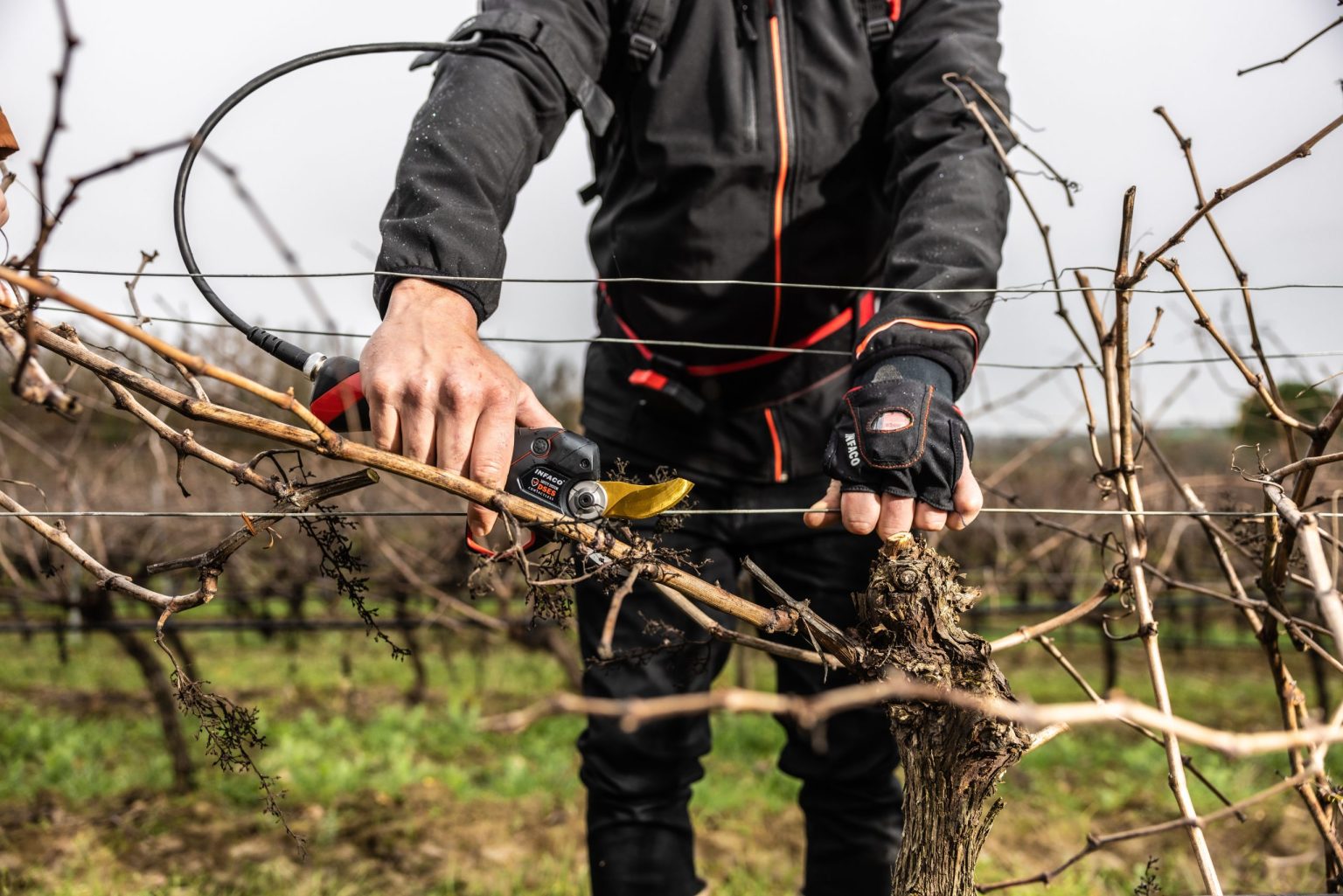

The wired DSES option requires an INFACO conductive glove to operate. The glove is connected to a special power cable that provides a physical link with the pruning shear. It provides protection for the user, while reducing the risk of accidental reopening on damp, sappy wood or wood close to the ground.

Operation is identical to Wireless: as soon as the cutting head comes into contact with the conductive glove, the pruning shear blade opens instantly.
